Zigoma Guide: Patented Stackable Surgical Guide for Zygomatic Implants

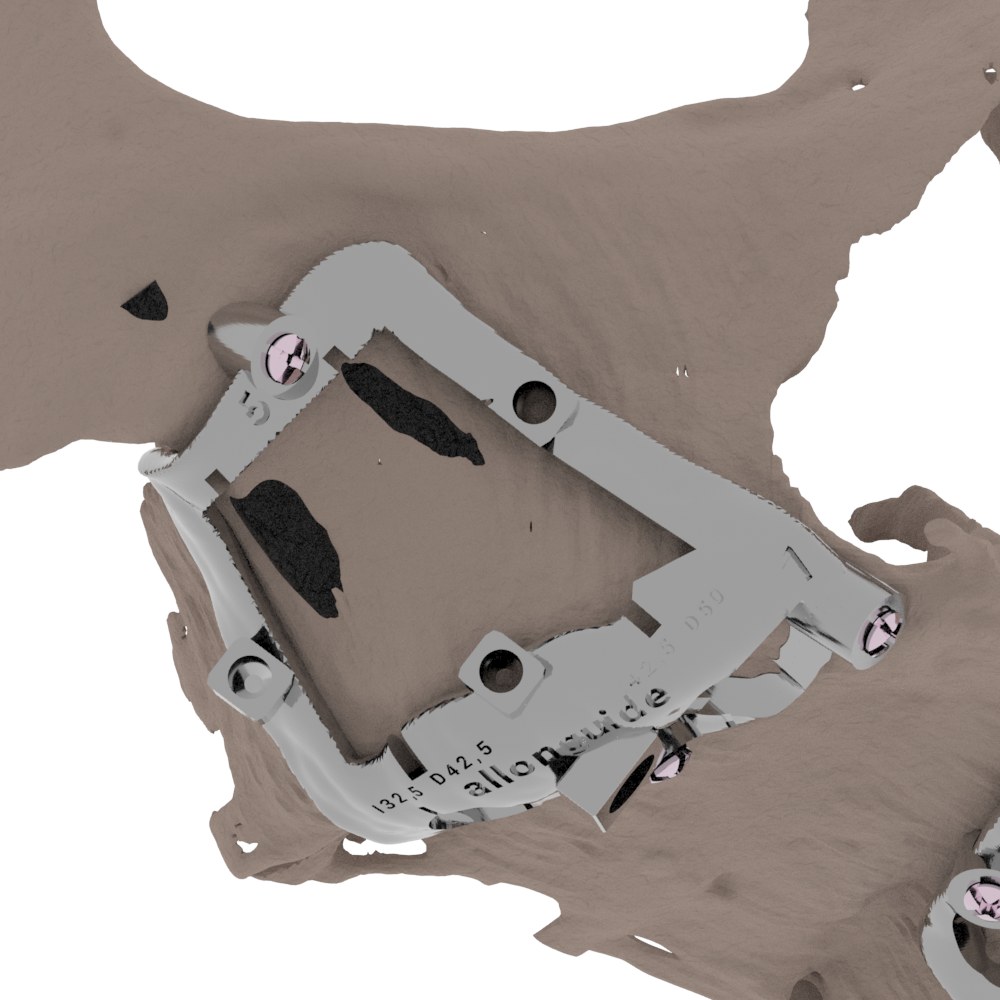

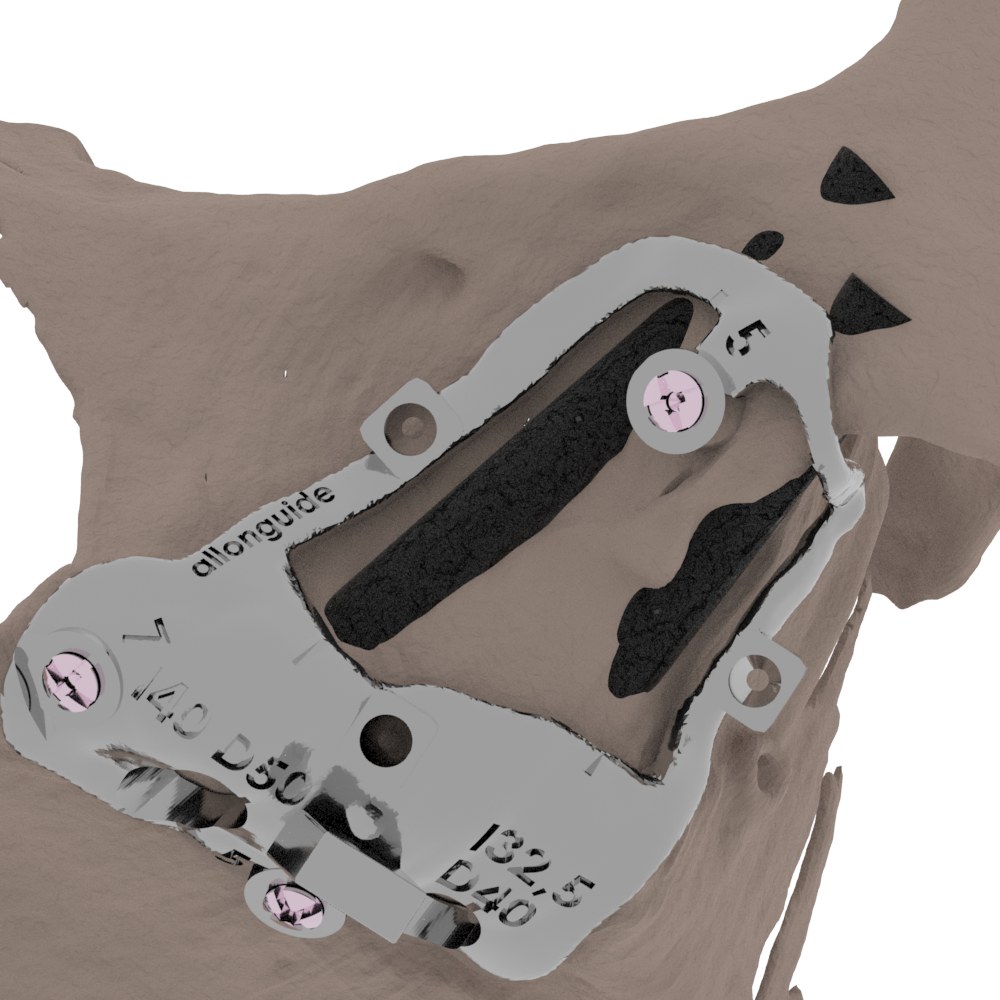

Patented, multi-function surgical guide system for zygomatic implant surgery in the severely atrophic maxilla. One anatomy referenced guide carries every step: sinus window, drilling axis, screw length and, when needed, bone reduction.

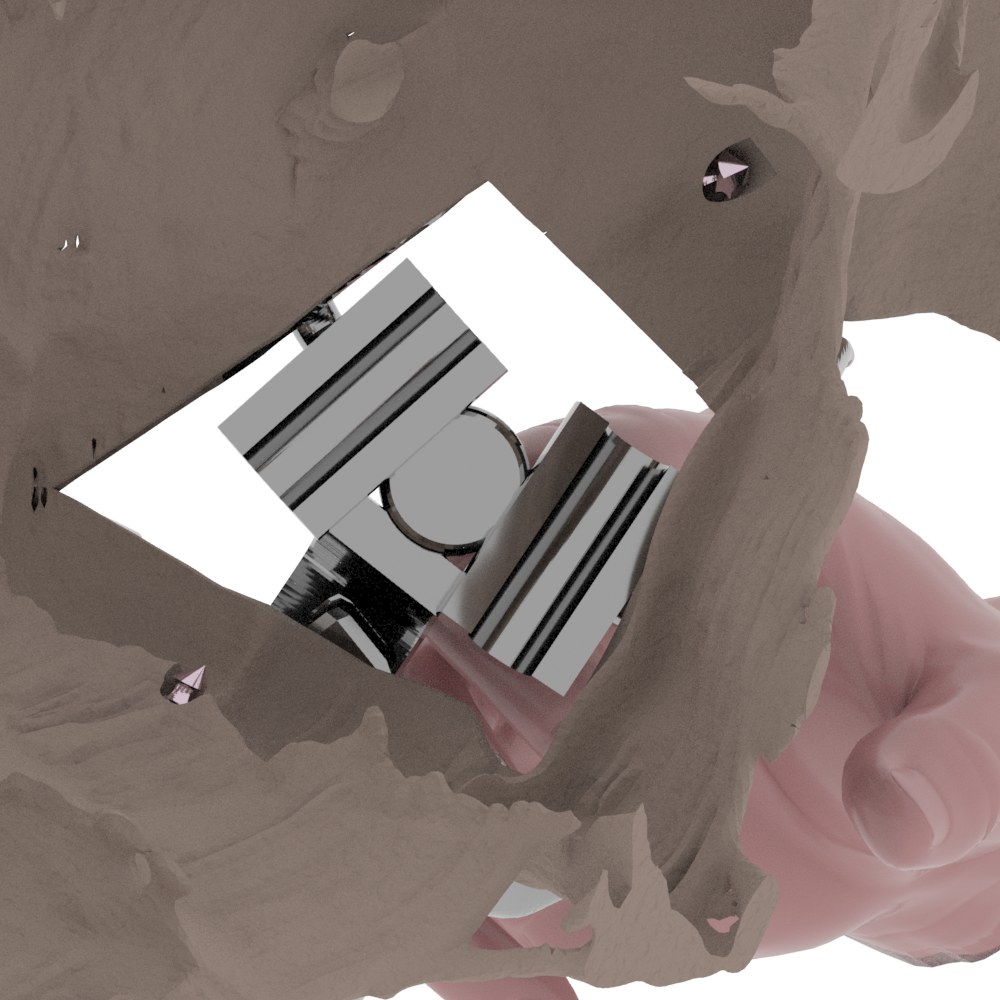

What is included: - Digital zygomatic implant planning on your CBCT (axis, entry point, apical target, sinus relationship) - Sinus window module: case-specific window contour and depth reference for controlled lateral wall access - Screw guiding module with separate sleeves for 2.9 / 3.5 / 4.0 mm drill steps and readable screw length markers - Optional stackable bone reduction module on the same base - Magnetic module retention: modules can be removed and re-seated without losing position - Anti-rotation features and finger peg for hand control during placement - Fixation pin stabilisation, medical grade resin, autoclave compatible (134 C) - Planning preview shared for your approval before production

What we need from you: - CBCT as raw DICOM covering the full zygoma and orbit region - Intraoral scan or denture scan with antagonist and bite record - Prosthetic target and the zygomatic implant system you use

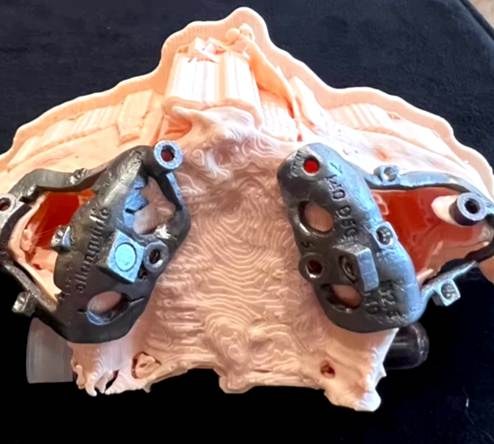

The system was developed and patented by our team and has been used in university and private clinic zygomatic cases. Suitable for quad zygoma and hybrid (zygomatic + conventional / pterygoid) protocols.

Starting price per guide; final quote depends on the number of zygomatic implants and modules.
