Stackable Surgical Guide Set for Full-Arch Immediate Load (Bone Reduction + Pilot + Final)

Modular, layered (stackable) surgical guide set for full arch immediate load cases. One anatomy-referenced base plate, separate guide layers for each surgical step.

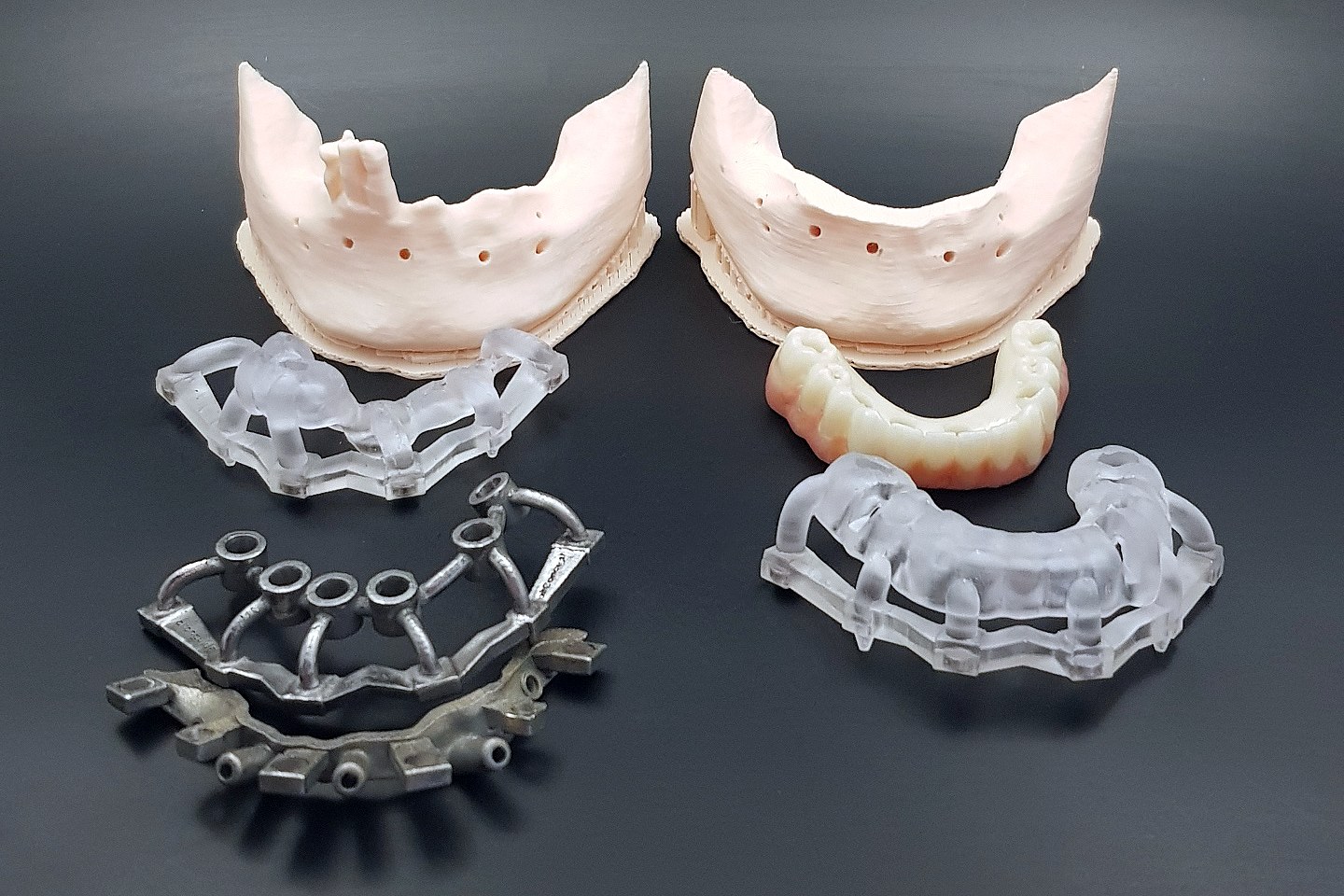

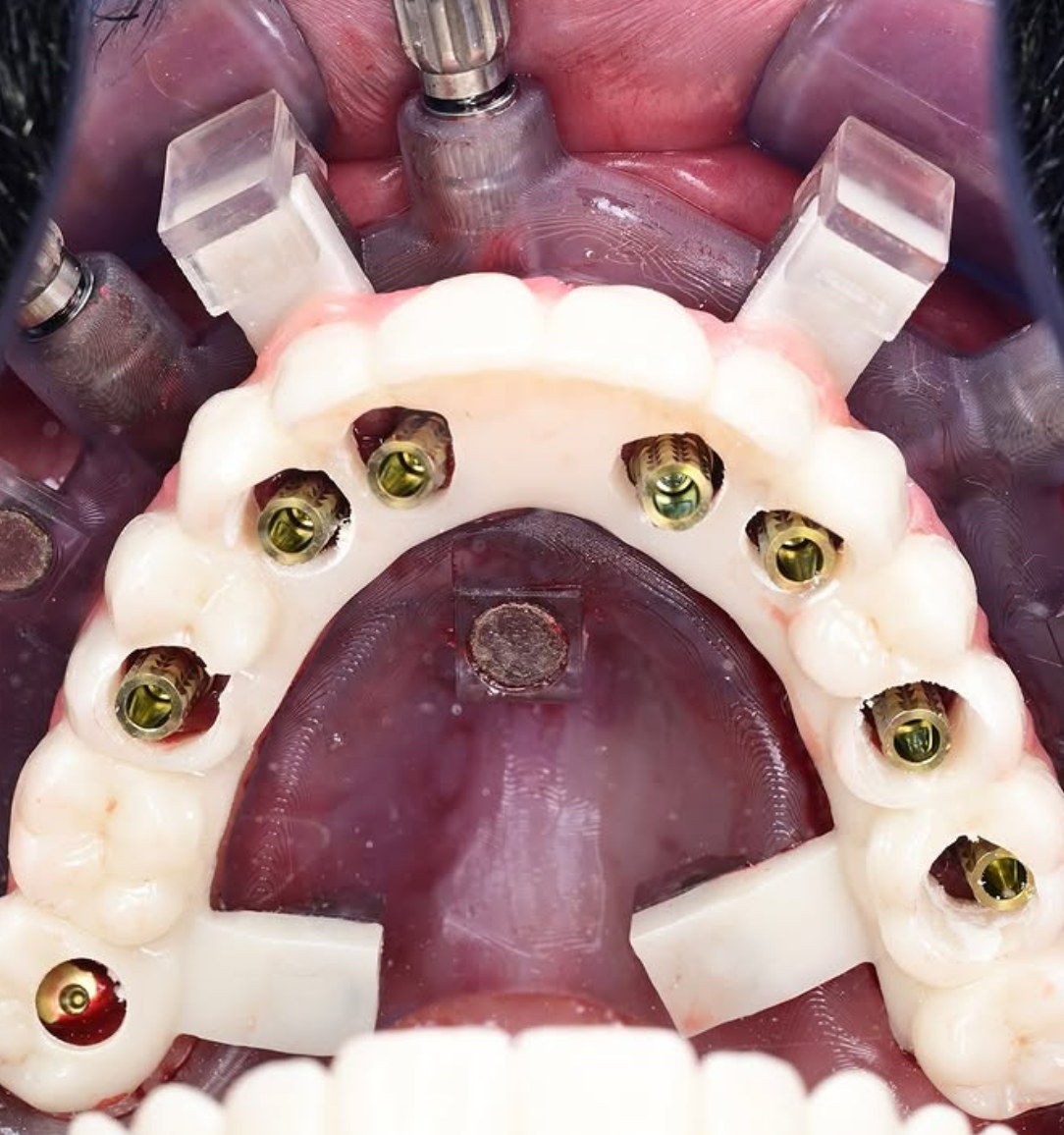

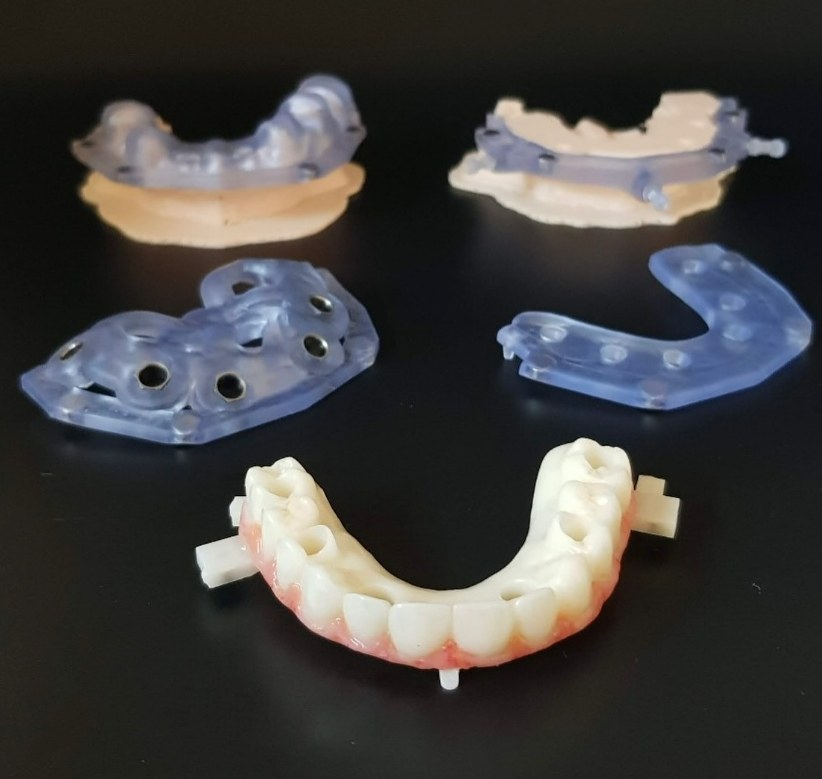

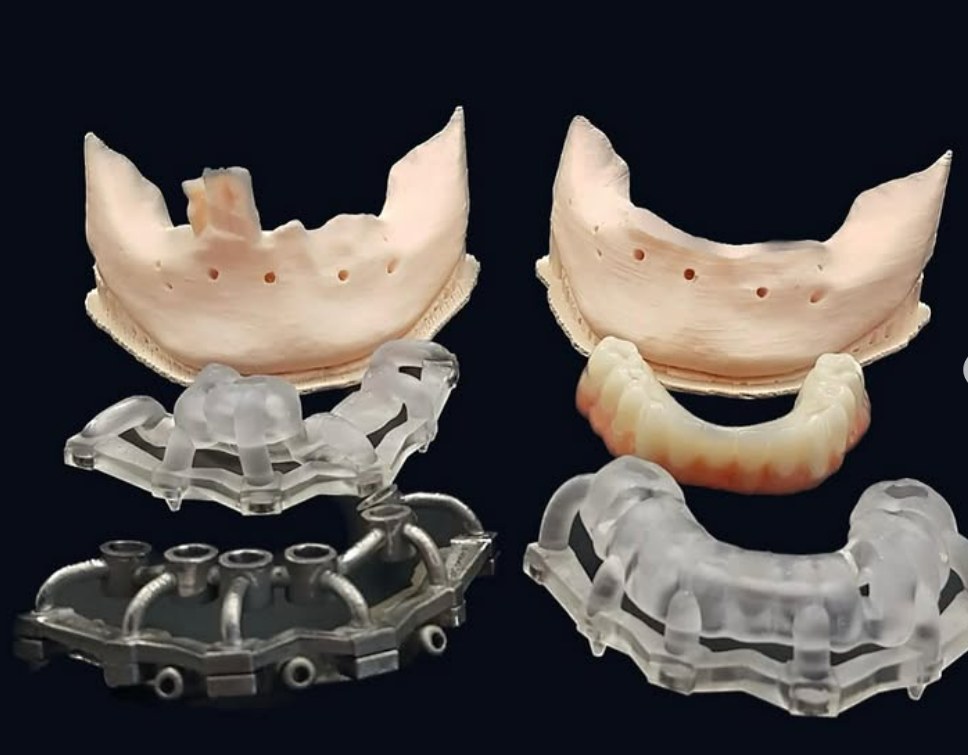

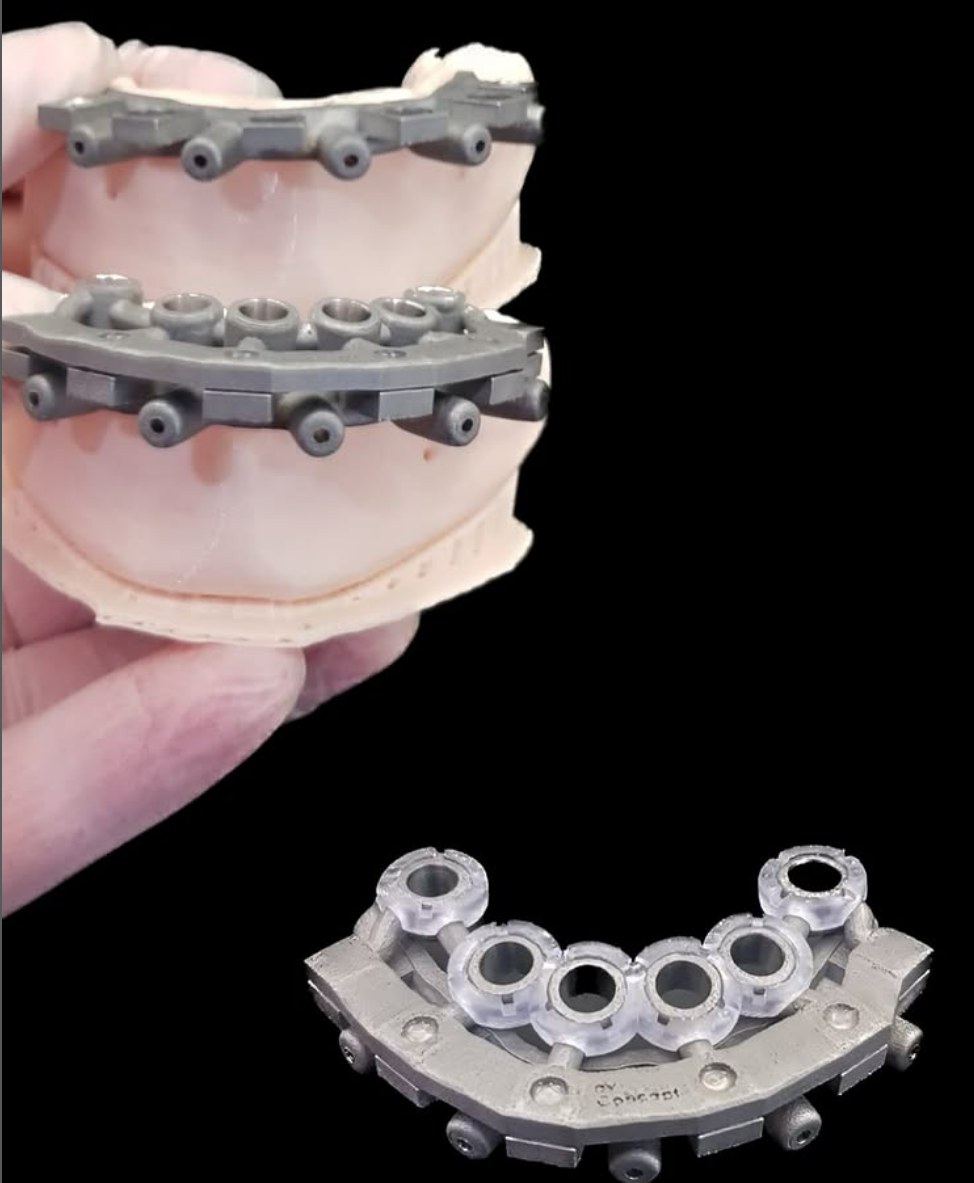

What is included: - Base plate fixed with fixation pins, designed on your CBCT + intraoral scan / denture reference - Bone reduction guide with millimetre based reduction plane index - Pilot drill guide layer - Final fully guided layer, sleeve and offset matched to your implant system - Optional: temporary prosthesis / conversion reference layer on the same base - Magnetic layer retention for fast, repeatable swapping between steps during surgery - Planning preview for your approval, then printing in medical grade, autoclave compatible resin (134 C)

Why stackable: - Every step (reduction, drilling, placement) runs on the same reference, so the final guide sits on the reduced bone plane exactly as planned - Fewer intraoperative interpretation gaps between clinic and lab - Suitable for open flap full arch, All-on-4 / All-on-X and hybrid protocols

What we need from you: - CBCT as raw DICOM (folder or zip) - Intraoral scan or scan of the existing denture with antagonist and bite record - Prosthetic target (denture, wax-up or digital setup) and implant system / guided kit

20+ years of CAD/CAM medical device design, 10,000+ planned cases, in-house design and 3D printing. Design-only STL delivery for local printing is available on request.

Price is a starting price per arch; final quote depends on the number of layers and implants.
